Enable role-based LDAP

Describes how role-based LDAP authentication and authorization work, how to configure each setting, and how to validate your configuration before you save it.

Redis Software uses a role-based mechanism to authorize users authenticated with LDAP authentication or with certificate-based authentication (CBA). You map LDAP groups to access control roles, and each user receives the access level of the role mapped to their group.

Role-based LDAP authorizes both cluster management users (previously known as external users) and database users. To authenticate users with client certificates instead of passwords, see certificate-based authentication for LDAP.

How role-based LDAP works

When a user signs in with LDAP credentials, Redis Software runs three steps. Each configuration section on this page maps to one of them:

1. Bind — Redis Software connects to the LDAP server using a dedicated service account, the bind user. Redis Software uses this connection to run the search queries in the next two steps. Configure it under LDAP server settings and Bind credentials.

2. Authenticate — Redis Software finds the user's directory entry and verifies the supplied password by binding to the LDAP server as that user. Configure this under Authentication query.

3. Authorize — Redis Software finds the group or groups the user belongs to, then matches them against the groups you mapped to roles under LDAP mappings. The user receives the access level of the matched group's role. Configure this under Authorization query.

If authentication succeeds but no group matches a mapping, Redis Software denies access. A common symptom is the user being redirected to a change-password screen.

LDAP terminology

Set up LDAP connection

To configure and enable LDAP from the Cluster Manager UI:

1. Go to Access Control > LDAP > Configuration.

2. Select + Create.

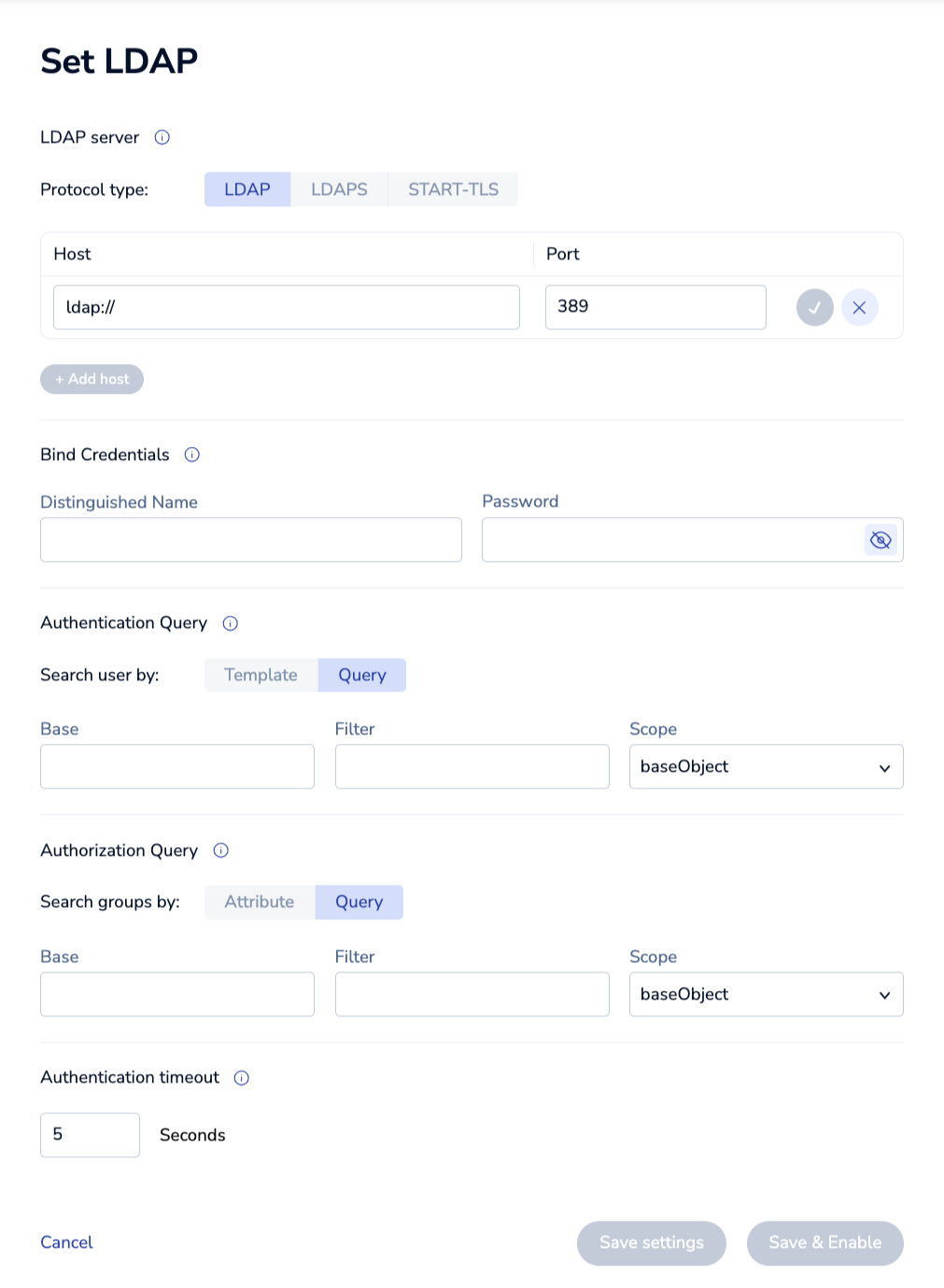

3. In Set LDAP, configure LDAP server settings, bind credentials, authentication query, and authorization query.



4. Select Save & Enable.

Before you save, validate your configuration so you can confirm each value is correct.

LDAP server settings

The LDAP server settings define how Redis Software connects to the LDAP server:

When you define multiple LDAP hosts, the directory tree structure must be identical for all hosts.

Trusted CA certificate

For LDAPS or STARTTLS, Redis Software validates the LDAP server's certificate against the trusted CA certificate you provide, in addition to the operating system's system CA certificates. Provide the certificate of the CA that issued the server's certificate, PEM-encoded. For a certificate that chains up to a root CA, provide the root CA certificate. In a root CA certificate, the Issuer and Subject fields are identical.

The server's certificate must be valid for the Host value you configured, because Redis Software verifies the hostname against the certificate.

Bind credentials

These settings define the bind user, the service account Redis Software uses to run the authentication and authorization search queries:

Authentication query

The authentication query locates the user's entry so Redis Software can verify their password. Choose how to find the user:

Redis Software replaces %u with the username of the person signing in.

• Use Template when every user's DN follows the same pattern. Redis Software builds the DN from the template and binds directly as the user, with no search.
• Use Query when you must search for the user's entry. Redis Software runs the search as the bind user, then binds as the matched user to verify the password.

Authorization query

The authorization query finds the groups a user belongs to. Choose how to find them:

Redis Software replaces %D with the Distinguished Name of the person signing in.

• Use Attribute when the user's entry already lists its groups, for example in a memberOf attribute. Redis Software reads the attribute from the user entry it found during authentication.
• Use Query when you must search for group entries that list the user as a member.

Authentication timeout

The Authentication timeout setting determines the connection timeout to the LDAP server during user authentication.

By default, the timeout is 5 seconds, which is recommended for most cases.

However, if you enable multi-factor authentication (MFA) for your LDAP server, you might need to increase the timeout to provide enough time for MFA verification. You can set it to any integer in the range of 5-60 seconds.

Validate your LDAP configuration

Before you save your configuration in the Cluster Manager UI, verify each setting from any machine that can reach the LDAP server using ldapsearch. The ldapsearch command-line tool is provided by ldap-utils on Debian and Ubuntu, or openldap-clients on RHEL.

These commands run the same queries Redis Software runs internally, so a successful result means the corresponding UI setting is correct. Validating each setting on its own lets you find the one wrong value instead of only seeing a failed sign-in after you save.

Replace the placeholders with the values you intend to enter in the UI:

1. Validate protocol, host, port, and trusted CA certificate

Confirm the server is reachable on the chosen protocol and port, and, for LDAPS or STARTTLS, that your CA certificate validates the server's certificate. A successful command returns the server's root entry (result: 0 Success); a TLS error means the CA certificate is wrong or missing.

# LDAP (port 389, no encryption)
ldapsearch -x -H ldap://<HOST>:389 -s base -b "" "(objectClass=*)"

# LDAPS (port 636, TLS)
LDAPTLS_CACERT=/path/to/ca.pem \
  ldapsearch -x -H ldaps://<HOST>:636 -s base -b "" "(objectClass=*)"

# STARTTLS (port 389, upgraded to TLS — note -ZZ)
LDAPTLS_CACERT=/path/to/ca.pem \
  ldapsearch -x -ZZ -H ldap://<HOST>:389 -s base -b "" "(objectClass=*)"

If you configure multiple hosts, run this against each one. All hosts must share an identical directory tree structure.

2. Validate bind credentials

Confirm the bind user can authenticate. Success means the Distinguished Name and Password fields are correct. Failure returns Invalid credentials (49).

LDAPTLS_CACERT=/path/to/ca.pem \
  ldapsearch -H ldaps://<HOST>:636 \
  -D "<BIND_DN>" -w '<BIND_PW>' \
  -s base -b "<BIND_DN>" "(objectClass=*)"

3. Validate the authentication query

Confirm Redis Software can locate the user's entry. Substitute <USER> with a real username.

If you chose Query, this validates Base, Filter, and Scope. The command must return exactly one entry:

LDAPTLS_CACERT=/path/to/ca.pem \
  ldapsearch -H ldaps://<HOST>:636 \
  -D "<BIND_DN>" -w '<BIND_PW>' \
  -b "<BASE>" -s sub "(cn=<USER>)"

-s sub corresponds to Scope = wholeSubtree; use -s one for singleLevel or -s base for baseObject. Replace the filter with your Filter value, substituting %u with <USER>.

If you chose Template, bind as the user your template produces to confirm the template resolves to a valid DN and the password authenticates:

LDAPTLS_CACERT=/path/to/ca.pem \
  ldapsearch -H ldaps://<HOST>:636 \
  -D "cn=<USER>,ou=dev,dc=example,dc=com" -w '<USER_PW>' \
  -s base -b "cn=<USER>,ou=dev,dc=example,dc=com" "(objectClass=*)"

Replace the DN with your Template value, substituting %u with <USER>.

4. Validate the authorization query

Confirm Redis Software can find the user's groups. The returned group DN must later match a group you enter under LDAP mappings.

If you chose Attribute (for example, memberOf), request that attribute from the user's entry. The memberOf: lines in the output are the user's groups:

LDAPTLS_CACERT=/path/to/ca.pem \
  ldapsearch -H ldaps://<HOST>:636 \
  -D "<BIND_DN>" -w '<BIND_PW>' \
  -b "<USER_DN>" -s base "(objectClass=*)" memberOf

The attribute name is case-sensitive.

If you chose Query, this validates the group Base, Filter (with %D = user DN), and Scope:

LDAPTLS_CACERT=/path/to/ca.pem \
  ldapsearch -H ldaps://<HOST>:636 \
  -D "<BIND_DN>" -w '<BIND_PW>' \
  -b "<GROUP_BASE>" -s sub "(member=<USER_DN>)"

5. Validate the LDAP mapping

The most common configuration error is a mismatch between the group DN returned in step 4 and the DN entered under LDAP mappings. Copy the group DN exactly as ldapsearch returns it, including character case and spacing, into the mapping. If they do not match exactly, authentication succeeds but Redis Software denies the user access.

End-to-end check

After you save, sign in to the Cluster Manager UI, or connect to a database with redis-cli, using the test user's LDAP credentials. Success confirms all the steps are configured correctly.
